Cadalyst Systems Benchmark, Part 1: Evaluate and Compare Workstations Running AutoCAD

Posted by cadhardware

Aug 16, 2011 6:00:04 AM

Merriam-Webster’s online dictionary lists one definition for benchmark as: a standardized problem or test that serves as a basis for evaluation or comparison.

The Cadalyst Systems Benchmark is designed to help you evaluate and compare the performance of workstations running AutoCAD. Comparing the performance scores between workstations (or different configurations) will help you make intelligent choices when purchasing a new computer or upgrading an existing one.

The Cadalyst Systems Benchmark reports a total index score and four component index scores keyed to specific performance areas, as well as individual numbers for each subroutine of the test. Note: the index numbers are simply a ratio of the base time for an operation compared to the current test time for an operation. Larger index numbers indicate better performance.

Total Index: This is an average of the four component indexes: It gives a quick look at the overall performance for a workstation. The Total Index score is the number we focus on for our reviews, but you can dig a little deeper for additional performance information relevant to your specific requirements.

3D Graphics Index: This is closely tied to a workstation’s graphics card. Depending on the rendering mode you typically use when working with 3D models in AutoCAD, you may want to focus on just one of the 3D graphics subcategories: Wireframe, Hidden, Conceptual, and Realistic. If you don’t work with 3D models, you can safely ignore this index all together.

2D Graphics Index: This measures more than just 2D graphics performance: It effectively measures all onscreen performance that does not involve rendering a 3D model. This component of the test creates, copies, blocks, moves, arrays, changes layers, changes colors, explodes, and erases three different types of objects: orthogonal lines, radial polylines, and text. Zoom and Pan commands are sprinkled throughout each test. Don’t pay any attention to the individual subcategories for this one, what matters is the total score.

Disk Index: This measures a workstation’s performance for reading and writing files to the hard drive. Most of the drives on the market today provide similar performance. What will make a big difference is having a pair of drives in a RAID 0 configuration. For RAID 0, file operations are simultaneously split between the two drives, nearly doubling performance.

CPU Index: This gauges the performance of the central processing unit at the heart of each workstation. It has proven to be an accurate measure of relative performance, especially with the turbo-mode of the new generation CPUs.

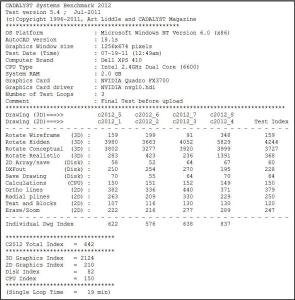

Cadalyst Systems Benchmark Results Page

Next time, we’ll discuss the operation of the Cadalyst Systems Benchmark in some detail.

Author: Art Liddle

Topics: Workstations, Autodesk, RAM, Hardware, Graphics Card, Hard Drive, AutoCAD, Processors, GPU, Graphics Cards, RAID, Benchmark, CAD
