Avoid Common Mistakes When You Set Up Vectorworks

Posted by cadhardware

Jul 7, 2011 10:18:13 PM

With any design program, no matter how novice or experienced you may be, you’re probably prone to making the occasional error. Start off the right way by checking the basic system recommendations before installing Vectorworks CAD software. System requirements can be found on the Nemetschek Vectorworks website. Also spend some time learning how you can optimize your desktop or workstation and get the most out of your Vectorworks experience.

With Vectorworks software, users at all levels have very likely made some common mistakes. All of them are related to settings and shortcuts that are intended to make design work faster and more enjoyable, but for the uninformed user these shortcuts can also cause some frustration. But fear not—they are all very easy to remedy.

Problems with Plug-Ins

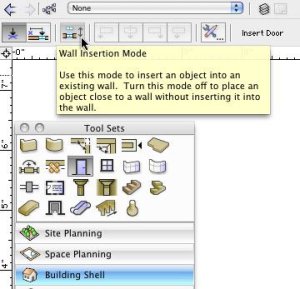

Vectorworks is rich in plug-in objects, such as doors and windows, which help users efficiently place intelligent objects in their designs. However, if you’re not familiar with these plug-ins, you might find difficulty inserting doors and windows into your walls. This is because these objects have ‘modes’ which provide several additional controls when using the tools. If a door or window isn’t inserting, it may be because “Wall Insertion Mode” has been accidentally turned off, thus preventing you from inserting doors/windows into walls. It’s simple to fix. Just enable the Wall Insertion Mode by clicking on the icon in the mode bar.

Problems with Plug-Ins

Skittish Selection Tool

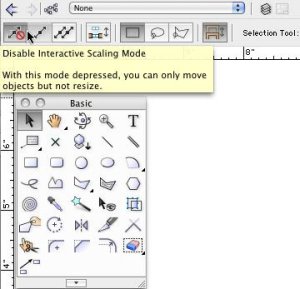

Have you ever run into a problem where you suddenly can’t use your selection tool to resize something? If you’re like most users, you probably have. Just like our first common mistake, this behavior is caused by accidentally enabling a mode in the mode bar. In this case, you have enabled the mode “Disable Interactive Scaling,” which means you’re no longer able to interactively re-size an object with the selection tool. Again, this has a simple fix. With the selection tool selected, simply click on the Disable Interactive Scaling button in the mode bar to turn it off.

<Skittish Selection Tool

Cursor Cue Concerns

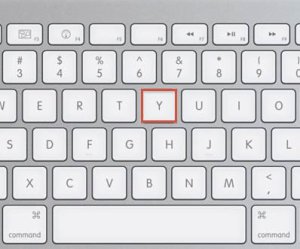

Keyboard shortcuts can be a very wonderful thing. Once you learn them, they save you time and dramatically improve your drafting/modeling efficiency. But, as helpful as they can be, these shortcuts can sometimes lead to errors. For example, you may have experienced suddenly losing all your SmartCursor Cues (visual screen hints that appear when hovering over specific points of objects, such as endpoint, center, midpoint, etc.). The cause of this sudden loss of cues is quite simple. You’ve likely accidentally hit the "Y" key, which has disabled your cursor cues. The quick fix for this? Hit the “Y” key again.

Cursor Cue Concerns

I hope these tips will help you avoid some of the common mistakes users make and allow you to maximize your efficiency when working with Vectorworks. For more Tech Tips, please visit the Vectorworks YouTube Channel.
