The release of IMSI TurboCAD Pro v19 this spring marked the first version of this CAD platform available in a 64-bit version. Previous versions of TurboCAD were only available as 32-bit, which limited the use of onboard memory for opening and manipulating large CAD files and for performing memory-intensive functions such as photorealistic rendering. No longer! Now TurboCAD users can experience the full capacity of the 64-bit versions of Microsoft’s Windows operating system.

The Advantages of a 64-Bit Application

The advantage of a 64-bit application working on a 64-bit OS means the program can address up to 48 times more available RAM (memory) than with a 32-bit application.

TurboCAD user Ken Friend has been using desktop CAD to create model kit designs. Initially, Ken used TurboCAD for 2D plans but then quickly evolved in using it for 3D design, taking advantage of the solid modeling capability introduced back in TurboCAD v6.

At that time, he designed a radio-controlled glider, which used an electric motor to take the plane to altitude. Once at altitude the motor would be switched off and the plane would glide back to earth. Ken said that one of the advantages to using TurboCAD at that time was the great way you could design rounded corners (3D fillets) for the fuselage and wings.

Rendering with 64-bit TurboCAD

More recently, Ken has been involved in modeling an ocean liner, the Normandie, with TurboCAD. Ken is making the model as the ship was originally built in the early 1930s. The rendering below of Ken Friend’s cruise ship file (250 MB) was never even able to be opened with previous versions of TurboCAD, let alone rendered!

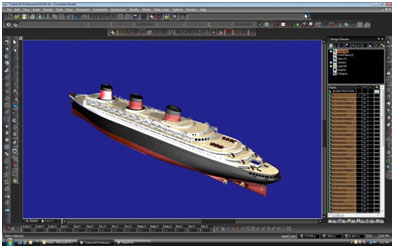

Model of the Normandie rendered in TurboCAD Pro v19.

Ken has been working on this modeling project for the past 2 1/2 years. Back in 2009, Ken actually received a third place in one of the first TurboCAD Challenges put on by Don Cheke for an early version of this 1/350 scale model. Ken’s goal is to create a kit that can be sold to modeling hobbyists. Ken’s been able to reduce the size of the model from 250 MB in size to a more manageable 65 MB by converting much of the solid modeling detail to surfaces.

He’s also now taking advantage of advances in 3D printer technology, including the more affordable prices, in order to manufacture the ship’s hull in sections. He hopes in the future to also print out smaller, more detailed components of the ship as well.

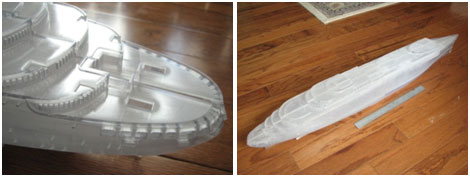

3D print model of the Normandie.

With a 64-bit OS and TurboCAD v19, users no longer have to struggle to open large files or see that annoying message in the middle of your rendering that says the system is low on memory and may not be able to complete the operation. Instead, if your system has additional memory, the 64-bit version of TurboCAD Pro will fully utilize it and large drawings will open smoothly and can be edited or rendered without a significant fall-off in performance.

Author: Bob Mayer, Chief Operating Officer, IMSI/Design
