Autodesk 360, Part 3: Collaboration Between Fixed and Mobile Locations

Posted by cadhardware

Aug 1, 2012 4:57:02 PM

In Part 2 of this series, I showed you some of the functionality of Autodesk 360. We are now going to look at how we collaborate using Autodesk 360, using a fixed location (PC on a network) and a mobile location (iPad on a remote site with Wi-Fi).

Your Documents Are Synced, What Happens Now?

You're logged in with your Autodesk ID and you have synced your documents from your fixed location (PC on the network) to the cloud (Autodesk 360).

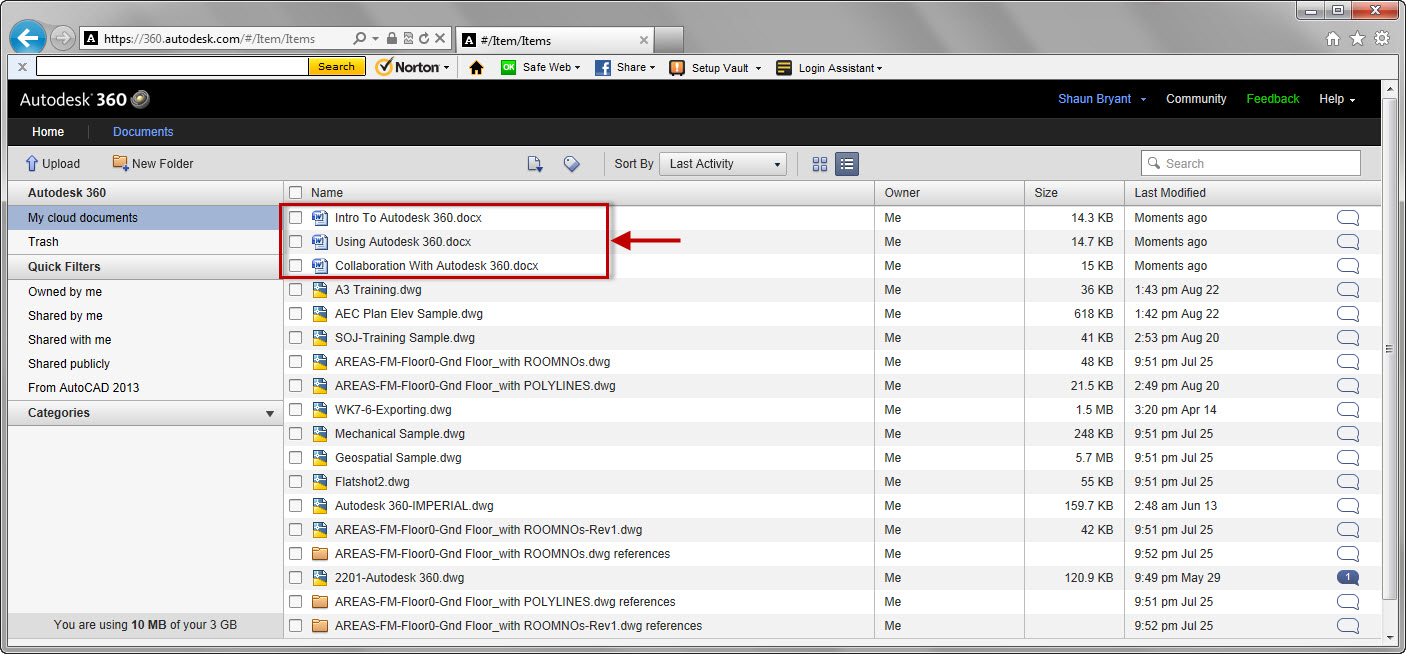

Logged into Autodesk 360. Logged into Autodesk 360.

Using AutoCAD 2013 In A Fixed Location

As mentioned in Part 2 of the series, all of the Autodesk 2013 product range now include an Autodesk 360 tab on the ribbon interface. We will be using this in a fixed location when you are already logged in. Click on the Online tab on the AutoCAD 2013 ribbon interface.

The Online ribbon tab, after log in. The Online ribbon tab, after log in.

So, right now, you will have your Autodesk 360 browser window open (it works best in Microsoft IE9) and your AutoCAD 2013 is done and uploaded to Autodesk 360 ready to go. That is your fixed location all set.

Using Autodesk 360 In A Mobile Location

So now we need to think about the mobile location. I am running Autodesk 360 and AutoCAD WS on my iPad, so let's check this out.

I first use my browser on my iPad (normally Safari by default) to logon to Autodesk 360. Once I am logged in, I can browse my documents in my Autodesk 360 folders. In this case, it is the AEC Plan Elev Sample Drawing, already loaded in Autodesk 360. I know this is a default sample drawing, but for speed's sake, use this as the drawing you have just loaded up from AutoCAD 2013 to Autodesk 360, using the Online tab in AutoCAD.

Autodesk 360 (logged in) with sub-menu highlighted. Autodesk 360 (logged in) with sub-menu highlighted.

I can click on the button shown and on the sub-menu, I can open up the drawing from Autodesk 360 using AutoCAD WS on my iPad.

Upon clicking on the Edit in AutoCAD WS option, I am prompted to install AutoCAD WS on my iPad from the App Store, if I haven't done so already.

If AutoCAD WS is already there on the iPad, you just load up AutoCAD WS and the new drawing will be there in your drawing list, as shown below (drawing is at the bottom of the list).

AutoCAD WS, with the loaded drawing highlighted in the list. AutoCAD WS, with the loaded drawing highlighted in the list.

You can now open the drawing in your mobile (remote) location on your iPad and edit the drawing accordingly based on whatever data you have at that location. You can now see the value of AutoCAD WS on a mobile device, as per my first series of articles about AutoCAD WS.

AutoCAD WS, with the loaded drawing ready for editing. AutoCAD WS, with the loaded drawing ready for editing.

If you refer back to Part 2 of this series, I show you how to use Autodesk 360 to work with updated drawings and how you can collaborate with your stored documents in Autodesk 360. With the addition of AutoCAD WS on a mobile device (in this case, the iPad), you now have the ability not only to collaborate, but design on the fly, using a mobile device and show the document changes in Autodesk 360 as you go. This leads to faster implementation of your design on site or on the factory shop floor.

The cloud is here and it is now. Autodesk are moving forward fast with this technology and it WILL revolutionize the way we work with not only CAD, but all the documents used in the design process such as specifications, OEM manuals and the like.

As I said in Part 2 of this series, it will allow us to embrace the mobile CAD movement and start to mobilise the CAD office/function in ways we never thought possible.

Stay tuned for Part 4 of this series, where I will show you how changes in documents and drawings are synchronised using Autodesk 360.

Author: Shaun Bryant
